ESTIMATION OF STEADY STATE OF ELECTRICAL NETWORK
Features:
- Power system state estimation is defined as process of obtaining reliable data for despatcher control.
- Estimation data with better conformity to the relations between network nodes.
- Estimation based on redundant measurements obtained by WAMS or SCADA.
- Wide-area simultaneous measurement in selected network places.
- Continuous data transfer via WAN to central station.
- Estimation software can be part of WAMS or SCADA systems.
- Flexible addition to the existing measurements.

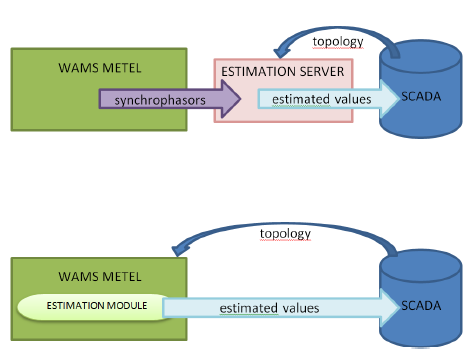

Two possibilities of data flow scheme:

Application benefits:
- Significant addition of synchrophasors to the estimation measurement data set.
- More exact and reliable estimation results.
- Elimination of calculation errors caused by non-synchronous measurements.
- Economic solution in case of extension of estimation to adjacent parts of medium voltage network.
- Perspective to use dynamic estimation of voltage phasors for monitoring of transient processes in real time.
Data processing:
- Database pump to estimation system database, both push and poll methods supported.
- Data and protocol emulation of the third-party RTUs.
- Communication from central station to estimation system via standard communication protocols.
Terminal - Phasor Measurement Unit(PMU) specification:
- Stand alone unit with in-place compute functions, storage option and remote parameterization.
- Fast parallel measurements — typically 10 kHz.
- Various measurement inputs for range of instrument transformers.
- 8 inputs per terminal.
- GPS time synchronization - phase precision < 0.1°, voltage and currents precisions < 1%.
- Wide range of communication options on physical layer (Ethernet, RS-232, GSM/GPRS) and standard protocols (e.g. IEC-68570-5-101/103/104, IEEE-C37.118) implemented.
- Conforms to EMC standards for industrial environment.
