Products overview for Synchronous Measurement
Phasor Measurement Unit FOTEL-T version B
Product Description
Product Technical Specification
Technical Specification GPS

- Measurement of voltage and current synchrophasors
- Modular construction with configuration up to 24 inputs
- Direct connection to voltage instrument transformers
- Input voltage range 45 to 120 Vef
- Voltage rating input to output 2.5 kVef
- RS232 communication interface
- Communication speed 1200 to 19200 bps
- High precision GPS time synchronization
- Power supply 24-60 V AC/DC
- Output voltages for power supply of external devices
- Installation on DIN rail 35mm
Phasor Measurement Unit METEL
Product Technical Specification


- Terminal (programmable microcomputer) for synchronous measurements
- Fast parallel measurements with data storage — typically 10 kHz
- Measurement inputs adjusted to outputs of instrument transformers - 6 analog inputs per unit
- High precision GPS time synchronization
- Wide range of communication options on physical layer (2 × Ethernet, 1 × RS232, 1 × GSM/GPRS) and standard protocols (e.g. IEC-870-5-101/103/104, IEEE-C37.118) implemented
- FTP client for file-based data exchange
- Data buffering for support communication without loss of data
- Self-diagnostic functions – internal temperature and power supply monitoring
- Service serial port
- Embedded WEB server for local and remote parameterization
- Local and remote firmware update
- Wide range security functions for communication including IPsec
- Conforms to EMC standards for industrial environment
- Power supply 100-230 V AC/DC
- 19“ rack installation, height 3U, depth 280 mm
- Input impedance of current inputs < 12 mΩ
- Input impedance of voltage inputs > 100 kΩ

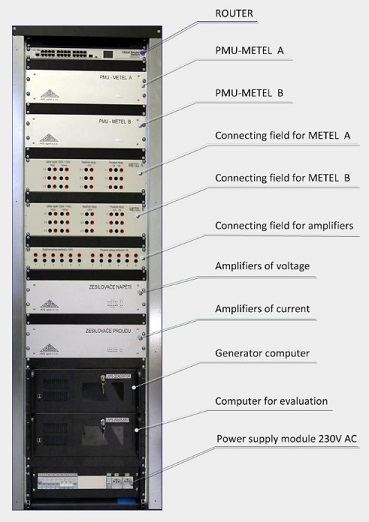

WAMTEL – device for analysis of dynamic phenomena in the power network

- Programable generators of voltage and current for simulation of outputs from instrument transformers
- User programming of generators in program modules of MATLAB
- Generation of fault trends stored in COMTRADE format
- Synchronous measuring devices PMU METEL with evaluation computer
- Possibility of autonomous measurement in a real operation
- Communication according to the IEEE C37.118 standard
- Sampling of trends up to 10kHz and data storage triggered by user defined event
- Data archiving, visualization of trends in tabular or graphic forms, data export in XLSX, CSV, JPG formats
